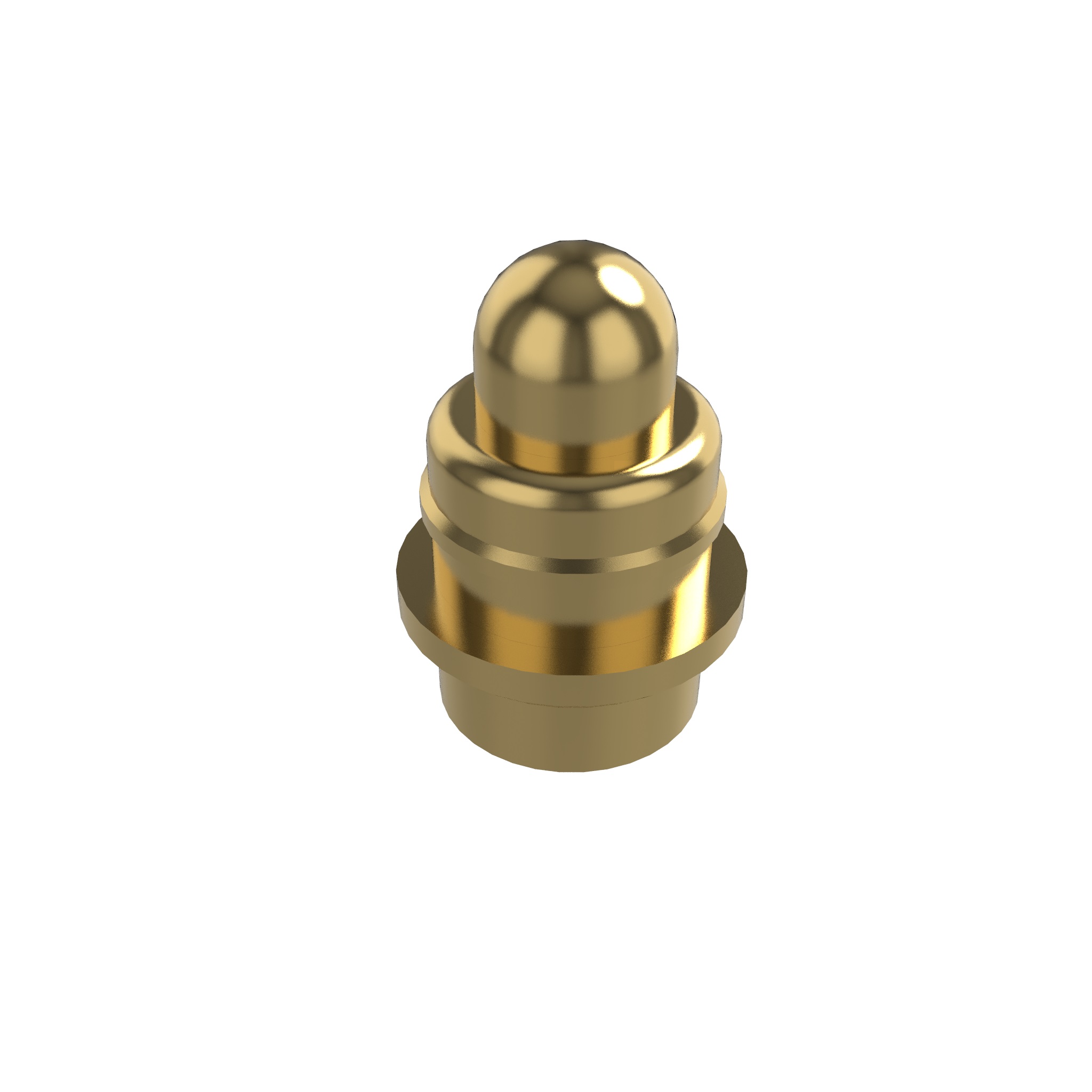

Small Pogo Pin with 2.65 Total Height, 2.05 mm Working Height, P3852FP01
Small Pogo Pin with 2.65 Total Height, 2.05 mm Working Height, P3852FP01
| Category |
Ultra Small Pins
|
| Part Number | P3852FP01 |
| Length | 2.65 |
| Working Height | 2.05 |
| Pin Direction | Vertical |
| Pin Tail | Flat |
| Pin Amount | 1 |
| Rated Current | 1 |
| Max Outer Diameter (mm) | 1.90 |
| Contact Resistance | 50 mΩ |
| Datasheet | P3852FP01.pdf |
| 3D CAD | P3852FP01.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 60 g ± 20% |
| Life Cycle | 10000 |
Description
This pogo pin has a total lenght of 2.65mm. It can be pressfitted into you device housing. The normal working height is 2.05mm.
