C.C.P. Contact Probes Co., LTD.

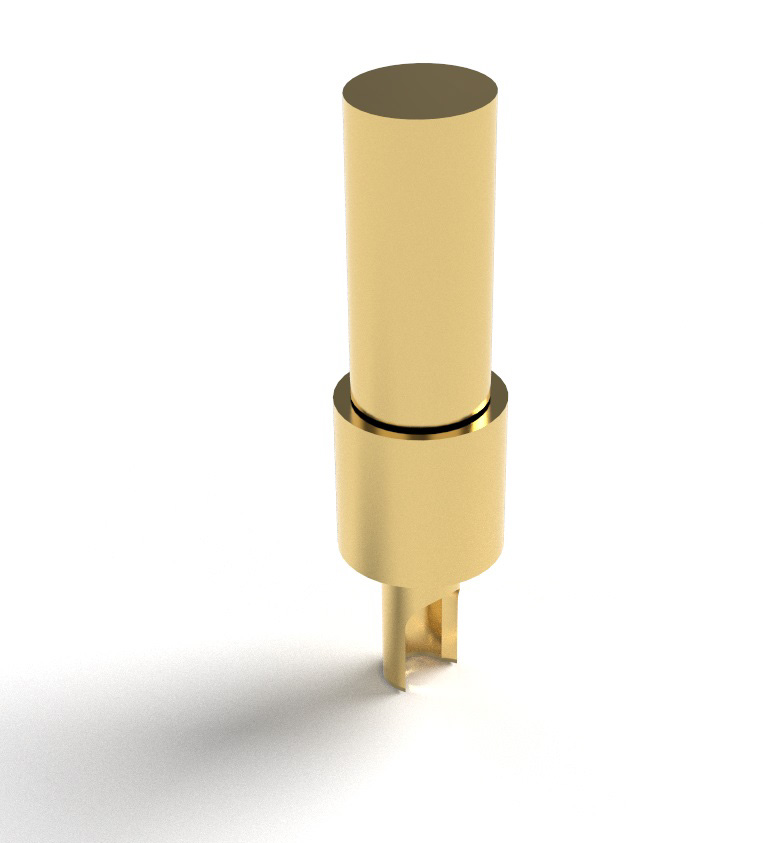

7mm Female Gold Pin with Solder Cup
7mm Female Gold Pin with Solder Cup
| Category | |
| Part Number | HCS00350FM1-B |
| Length | 7.00 |
| Pin Direction | Vertical |
| Pin Tail | Soldering Cup |
| Pin Amount | 1.00 |
| Rated Current | 2 |
| Contact Resistance | 50 mΩ |
| Datasheet | HCS00350FM1-B.pdf |
| 3D CAD | HCS00350FM1-B.STEP |
Get a Quotation
| Lead Time | 21 |
Product Specifications
| Barrel Base | Brass |
| Barrel Plating | Au |
| Rated Current | 2 A |
| Rated Voltage | DV 12 V |
| Contact Resistance | 50 mΩ |
Description
HCS00350FM1-B
