C.C.P. Contact Probes Co., LTD.

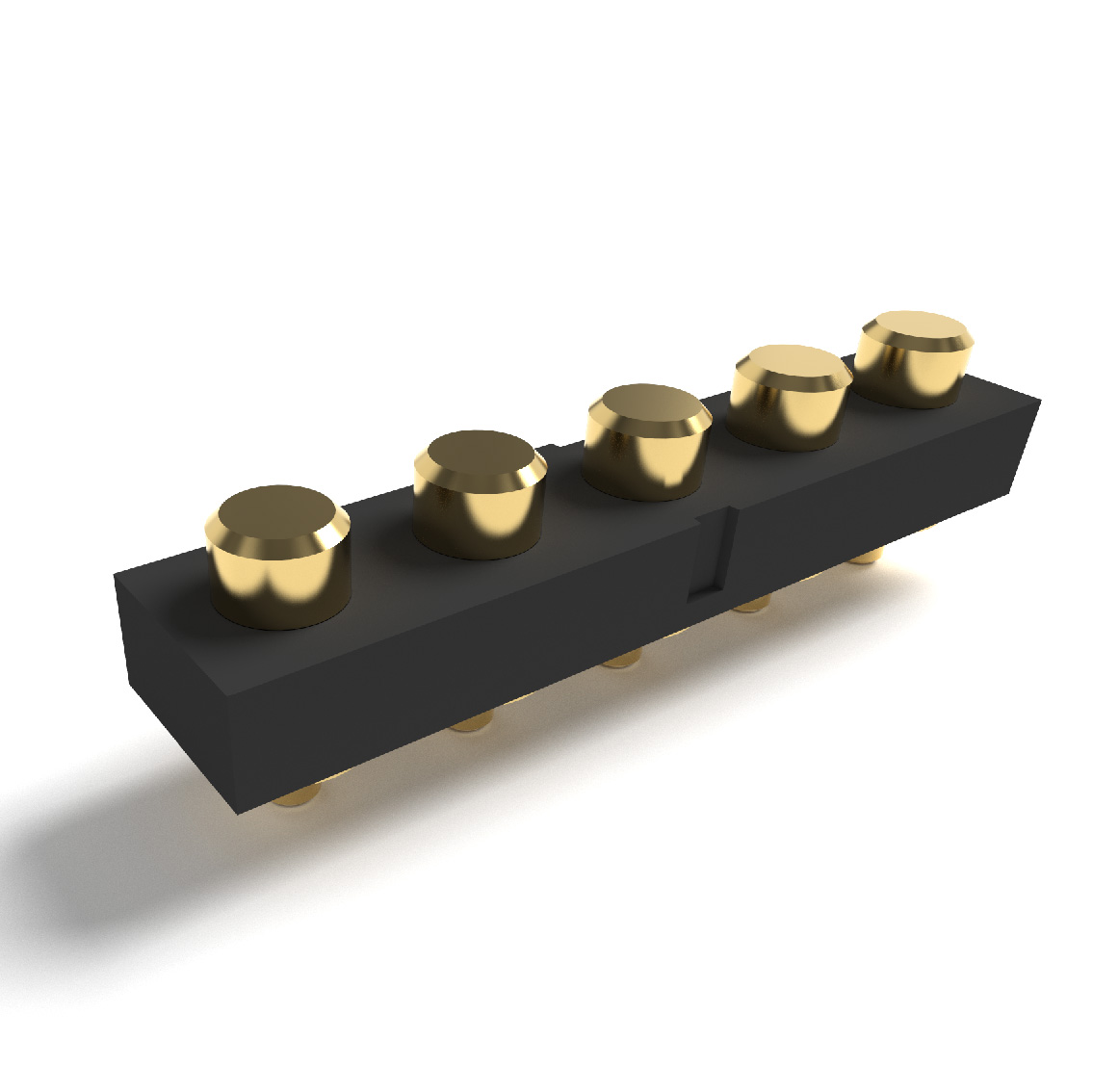

3.8 mm, 5 Pins, Non Standard Connectors, Landing Pad 2 mm, Pitch 3.5 mm
3.8 mm, 5 Pins, Non Standard Connectors, Landing Pad 2 mm, Pitch 3.5 mm
| Category | |
| Part Number | P2811FT01-05E350MR |
| Length | 3.80 |
| Pin Direction | Vertical |
| Pin Amount | 5.00 |
| Pitch | 3.50 |
| Rated Current | 3 |
| Max Outer Diameter (mm) | 2.80 |
| Contact Resistance | 50 mΩ |
| Datasheet | P2811FT01-05E350MR-Model.pdf |
| 3D CAD | P2811FT01-05E350MR.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Housing | HTN |
| Rated Current | 3 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
Description
P2811FT01-05E350MR
Cap Base: HTN
