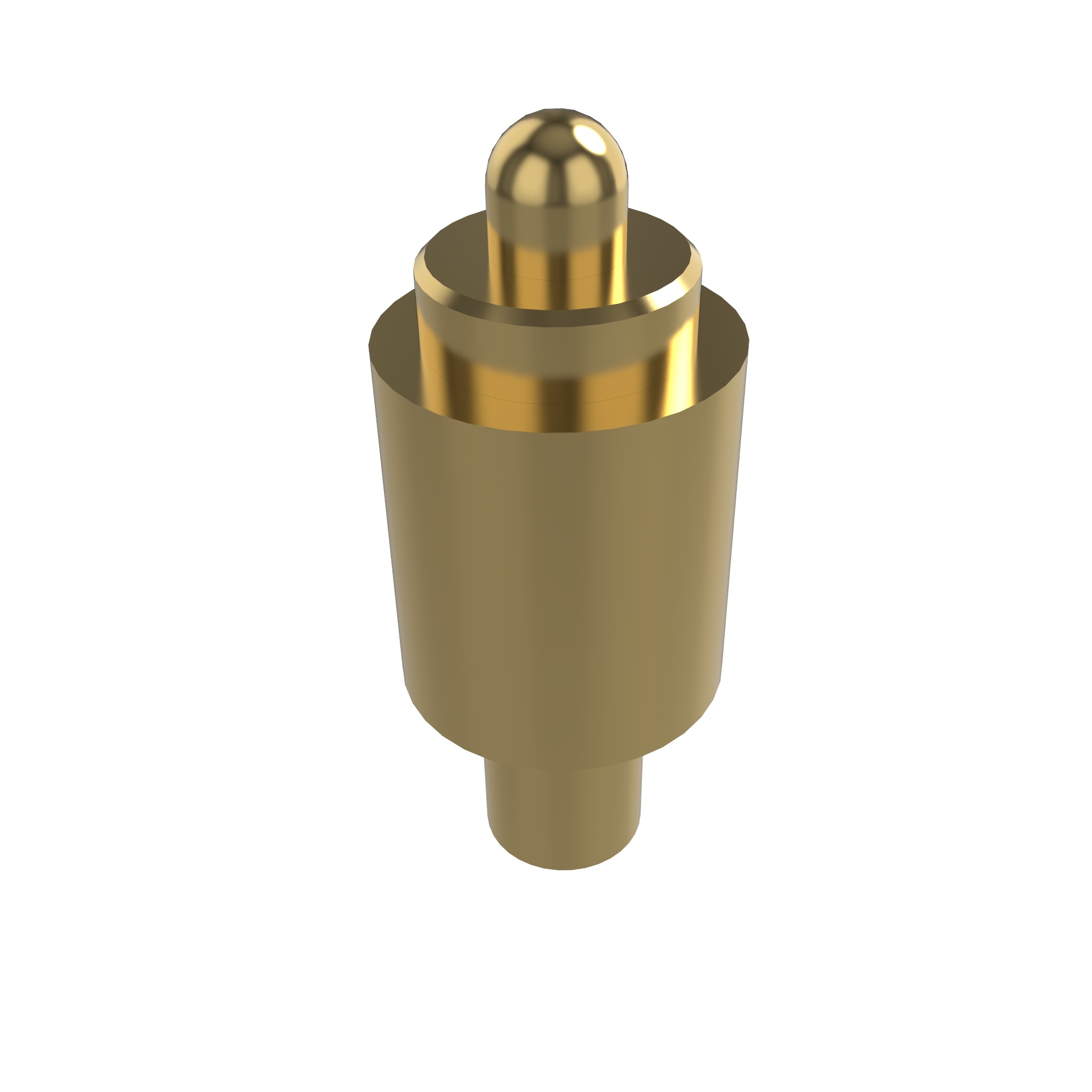

Durable Low Profile 2.9 mm Pogo Pin, 2.5 mm Working Height, P08797PH1
Durable Low Profile 2.9 mm Pogo Pin, 2.5 mm Working Height, P08797PH1
| Category |
Single Pogo Pins
|
| Part Number | P08797PH1 |
| Length | 2.90 |
| Working Height | 2.50 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Pin Amount | 1 |
| Rated Current | 2 |
| Max Outer Diameter (mm) | 1.70 |
| Contact Resistance | 50 mΩ |
| Datasheet | P08797PH1.pdf |
| 3D CAD | P08797PH1.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 45 g ± 20% |
| Life Cycle | 10000 |
Description
This low profile pogo pin is made of four parts. The special design offeres an ultra stable plunger that can resist horizontal forces much better than conventional pogo pins. The rugged design makes the pogo pin suitable for applications with a rotational mating or other non-vertical mating forces. This design is similar to P08760PH1 which is 0.2mm shorter.
Ultra stable, ultra durable and ultra small pogo pin.
