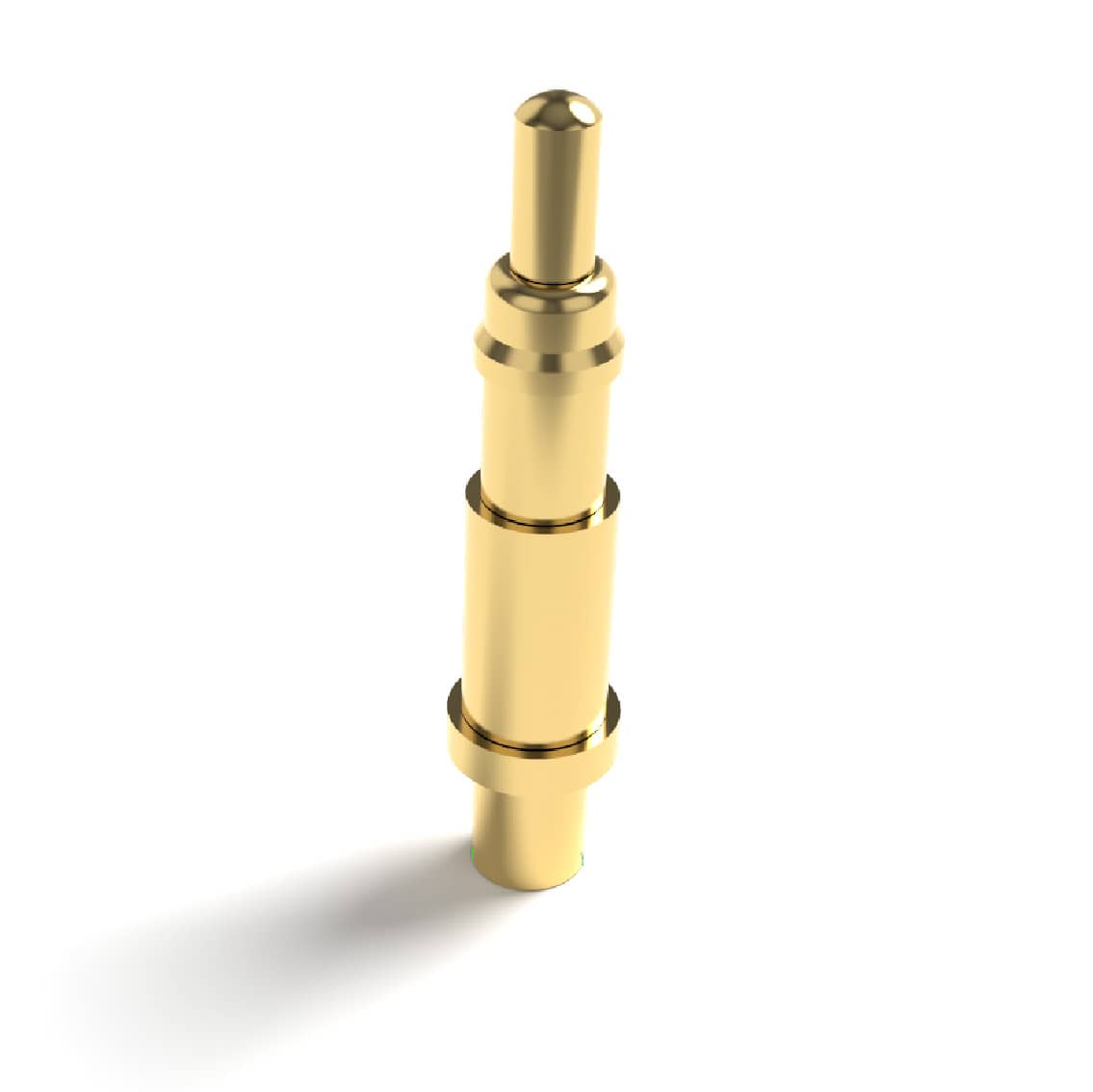

9.3 mm, 1 Pin, 8.3 mm Working Height, P2631PH03

9.3 mm, 1 Pin, 8.3 mm Working Height, P2631PH03
Previous Pause Next
  • 0
  • 1
Category
Single Pogo Pins
Part Number P2631PH03
Length 9.30
Working Height 8.30
Pin Direction Vertical
Pin Amount 1
Pitch 0.00
Rated Current 2
Contact Resistance 30 mΩ
Datasheet P2631PH03-Model.pdf
3D CAD P2631PH03.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring Base SUS304
Housing n/a
Rated Current 2 A
Rated Voltage 12 V
Contact Resistance 30 mΩ
Spring Force 75 g ± 20%
Life Cycle 10000

Description

P2631PH03
