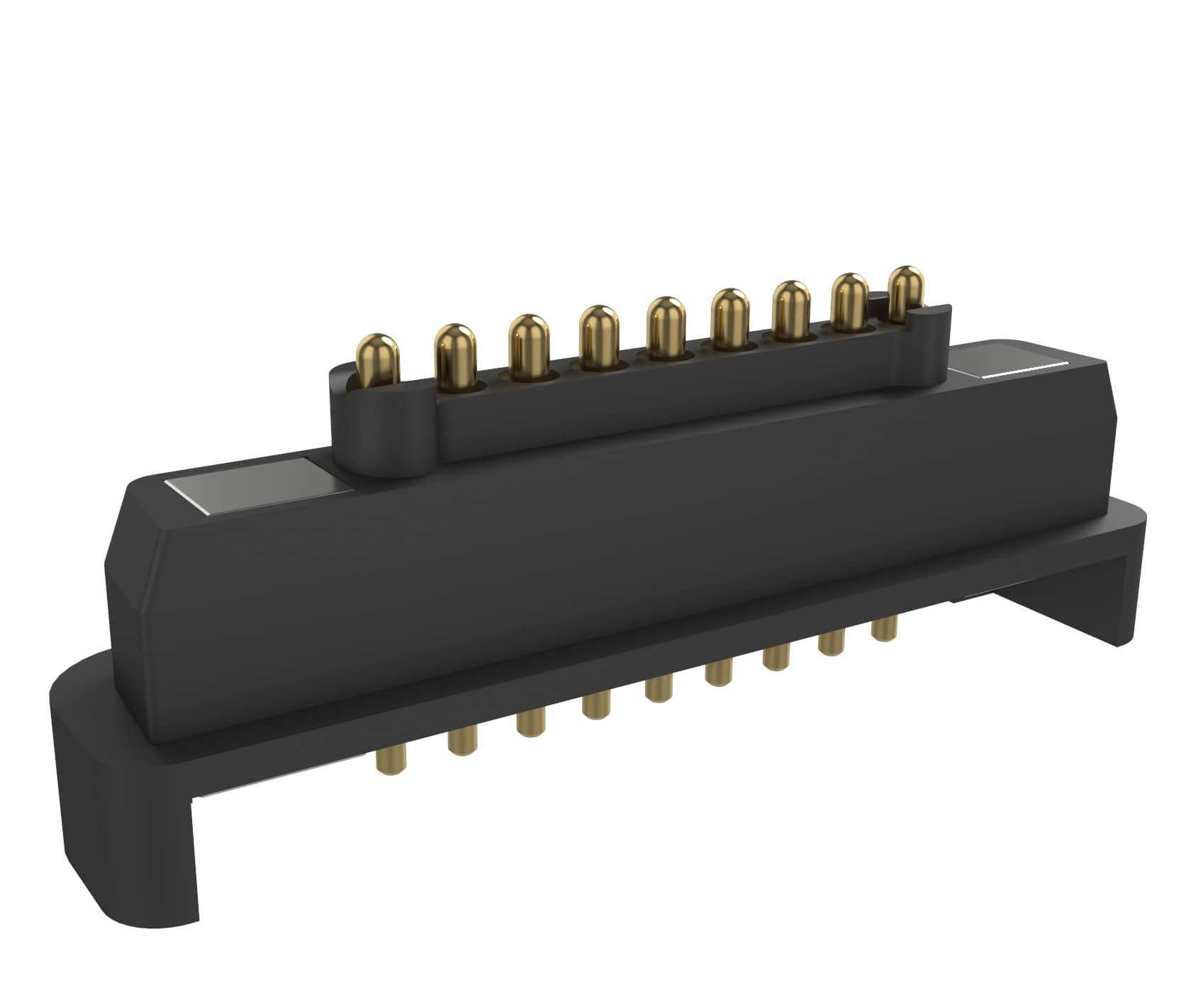

9.2 mm, 9 Pins, Non Standard Connectors, 8.1 mm Working Height, Pitch 1.6 mm
9.2 mm, 9 Pins, Non Standard Connectors, 8.1 mm Working Height, Pitch 1.6 mm
| Category |
Magnetic Connectors
|
| Part Number | S497AA03-09160H |
| Length | 9.20 |
| Working Height | 8.10 |
| Pin Direction | Vertical |
| Pin Amount | 9 |
| Pitch | 1.60 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | S497AA03-09160H-Model.pdf |
| 3D CAD | S497AA03-09160H.stp |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS304 |
| Housing | HTN |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 40 g ± 20% |
| Life Cycle | 10000 |
Description
S497AA03-09160H
Magnet Base: NdFeb 38UH
Magnetic Force: >2Kg
