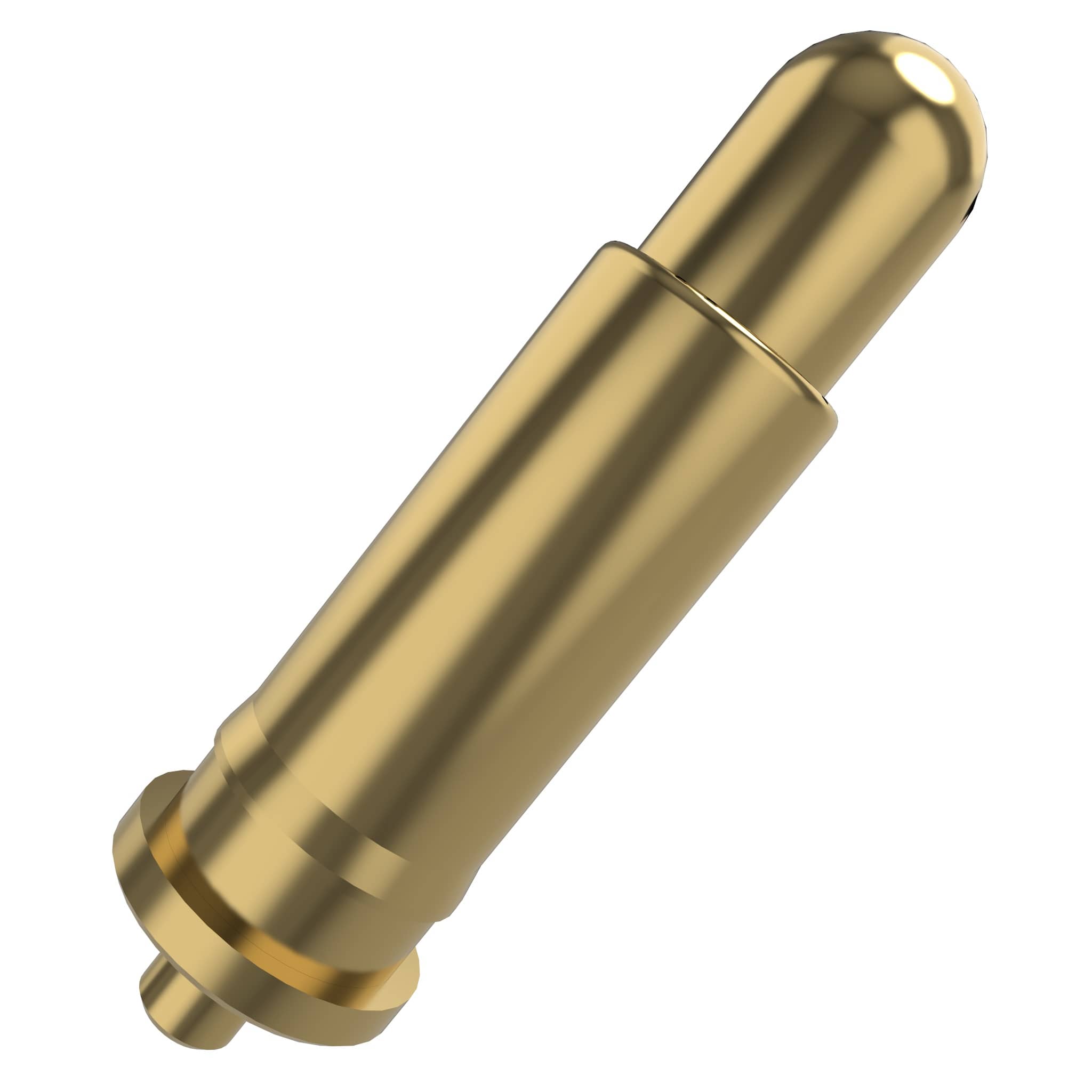

8.50 mm, 1 Pin, 7.80 mm Working Height, P09399PH1
8.50 mm, 1 Pin, 7.80 mm Working Height, P09399PH1
| Category |
Single Pogo Pins
|
| Part Number | P09399PH1 |
| Length | 8.50 |
| Working Height | 7.80 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Pin Amount | 1 |
| Rated Current | 1 |
| Max Outer Diameter (mm) | 3.00 |
| Contact Resistance | 50 mΩ |
| Datasheet | P09399PH1.pdf |
Get a Quotation
| Lead Time | 4 weeks |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Brass |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 1 A |
| Rated Voltage | 12V DC V |
| Contact Resistance | 50 mΩ |
| Spring Force | 50 g ± 20% |
| Life Cycle | 200000 |
Description
This pogo pin/ spring loaded pin has a pressfit ring and 10 microinch gold plating. The pin can be soldered on a PCB with a through hole.
