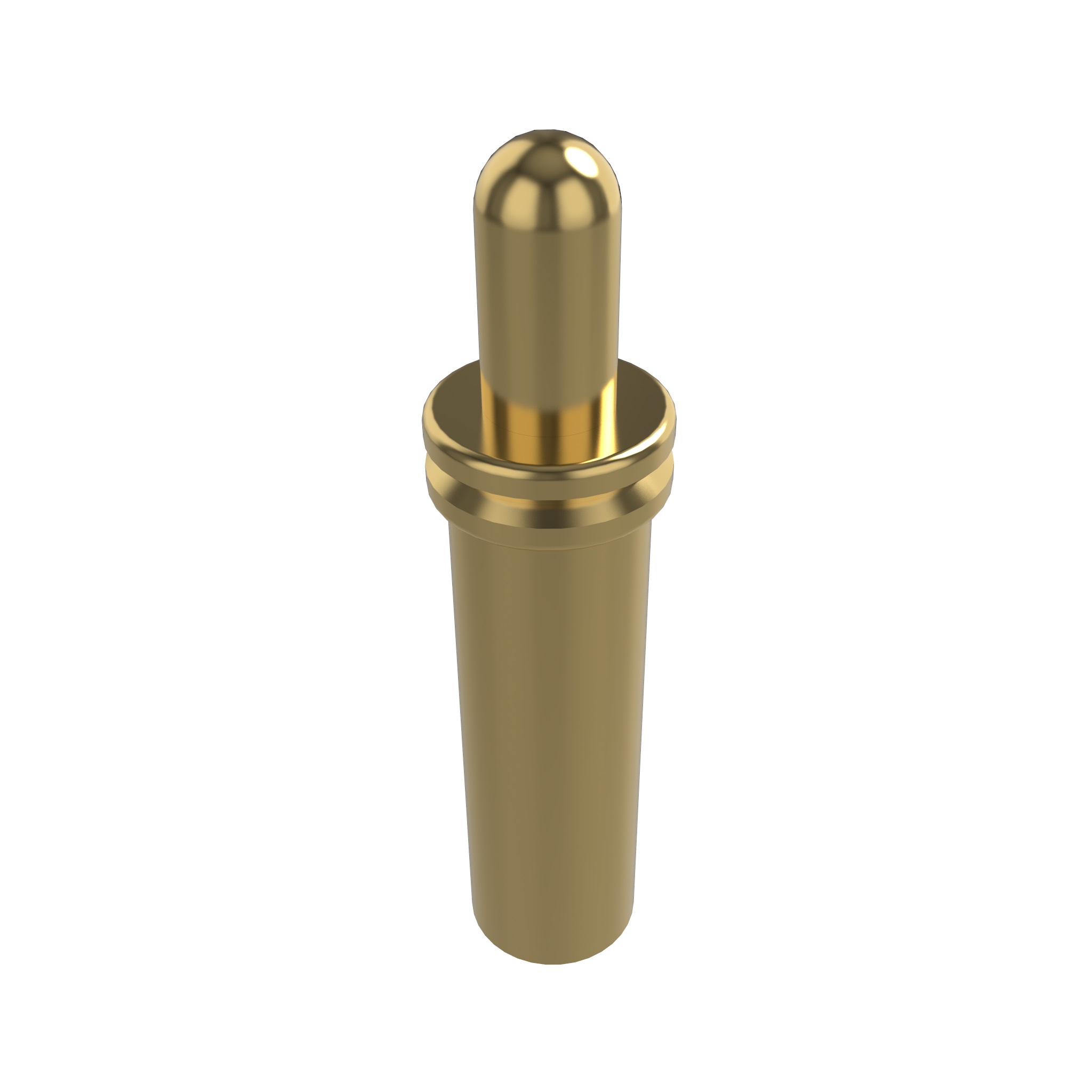

7.94 mm Pogo Pin, 6.94 mm Working Height, P08824SH1
7.94 mm Pogo Pin, 6.94 mm Working Height, P08824SH1
| Category |
Single Pogo Pins
|
| Part Number | P08824SH1 |
| Length | 7.94 |
| Working Height | 6.94 |
| Pin Direction | Vertical |
| Pin Tail | Flat |
| Pin Amount | 1 |
| Rated Current | 2 |
| Max Outer Diameter (mm) | 1.98 |
| Contact Resistance | 50 mΩ |
| Datasheet | P08824SH1.pdf |
| 3D CAD | P08824SH1.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Gold |
| Barrel Base | Brass |
| Barrel Plating | Gold |
| Spring Base | SUS |
| Rated Current | 2 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 60 g ± 20% |
| Life Cycle | 10000 |
Description
This double flanch pogo pin features a total length of 7.94mm and a working height of 6.94mm. With 2 Amps continuous current and 3 Amps peak current the pin is suitable for quick charging applications. The pin can be picked and placed by a machine without a cup. The pogo pin can be also used as a replacement for Mill-Max 0921-1-15-20-7X-14-11-0 Series.
The Barrel is made of 2 parts, of which one uses Brass and the other QSn4-3Y. The pogo pin is RoHS & HF compliant.
