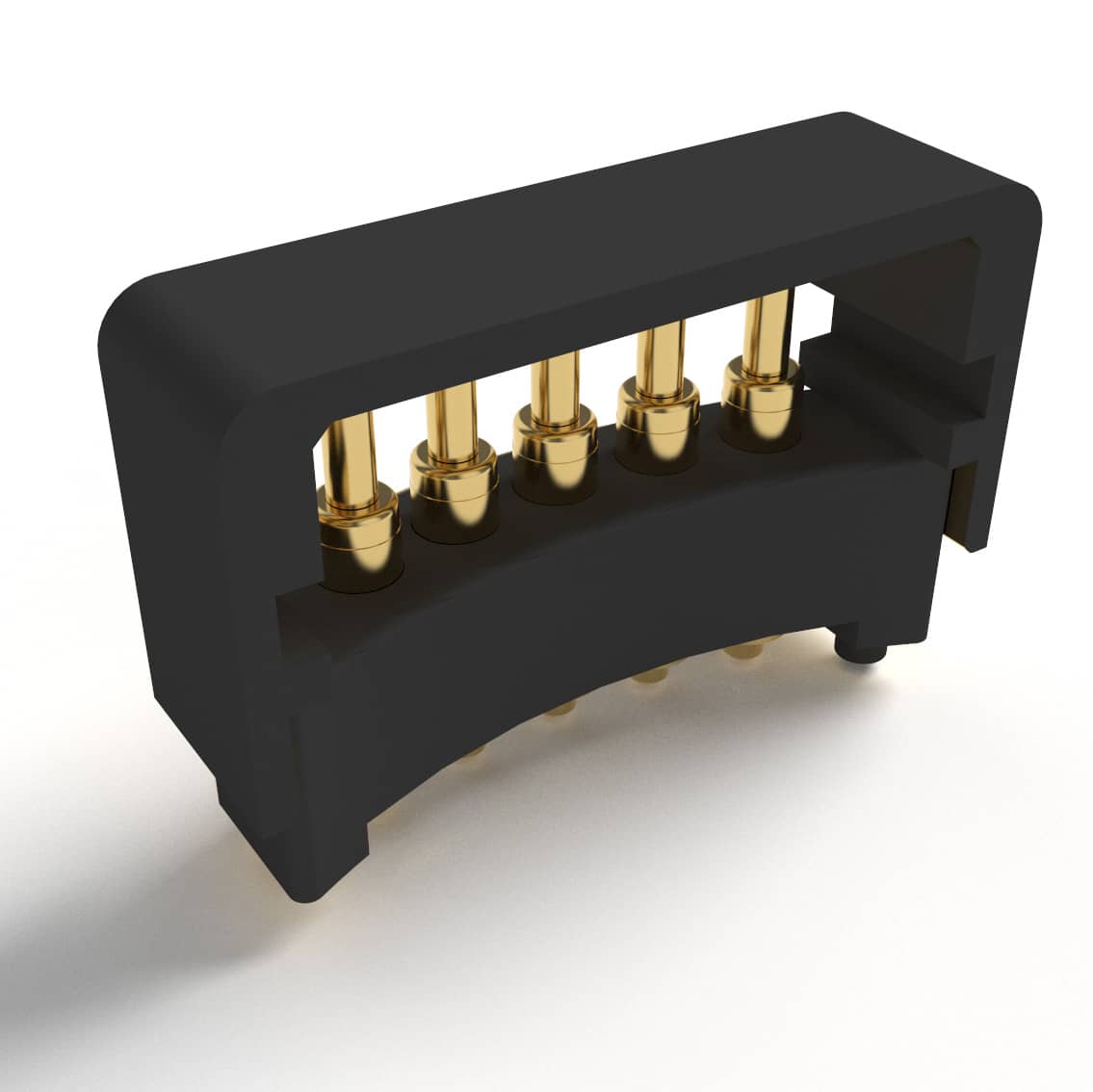

7.8 mm, 5 Pins, Non Standard Connectors, 6.8 mm Working Height, Pitch 2.02 mm
| Category |
Non Standard Connectors
|
| Part Number |
P2698MP03-05A202MR |
| Length |
7.80 |
| Working Height |
6.80 |
| Pin Direction |
Vertical
|
| Pin Tail |
Soldering Cup
|
| Pin Amount |
5 |
| Pitch |
2.02 |
| Rated Current |
2 |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickle/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickle/Au |
| Spring Base |
SWP |
| Housing |
HTN |
| Rated Current |
2 A |
| Rated Voltage |
12 V |
| Spring Force |
30 g ± 20% |
| Life Cycle |
20000 |
Description
P2698MP03-05A202MR
C.C.P. Contact Probes Co., LTD.
