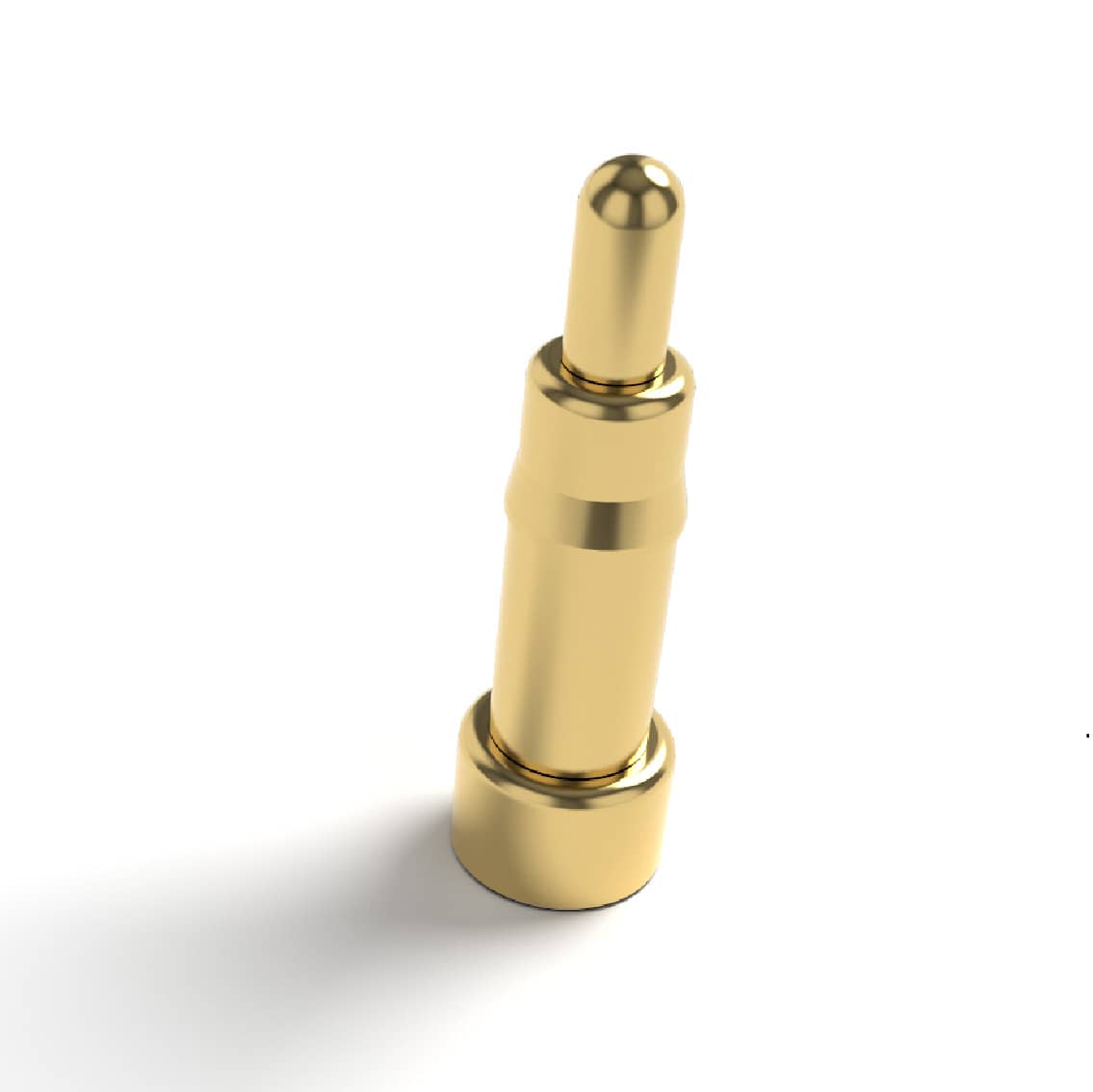

7.5mm, 1 Pin, 6.5mm Working Height, H096M0-H01C000C
7.5mm, 1 Pin, 6.5mm Working Height, H096M0-H01C000C
| Category |
Single Pogo Pins
|
| Part Number | H096M0-H01C000C |
| Length | 7.50 |
| Working Height | 6.50 |
| Pin Direction | Vertical |
| Pin Tail | Tail |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | H096M0-H01C000C.pdf |
| 3D CAD | H096M0-H01C000C.STEP |
Get a Quotation
| Lead Time | 21 |
Product Specifications
| Plunger Base | Brass 36047 |
| Plunger Plating | Au |
| Barrel Base | Brass 6304 |
| Barrel Plating | Au |
| Spring Base | SUS 304 |
| Housing | Black HTN + 30% GF(UL94V-0) |
| Rated Current | 1 A |
| Rated Voltage | DV12V V |
| Contact Resistance | 50 mΩ |
| Spring Force | 110 g ± 20% |
| Life Cycle | 10000 |
Description
H096M0-H01C000C can be delivered with and without cap.
