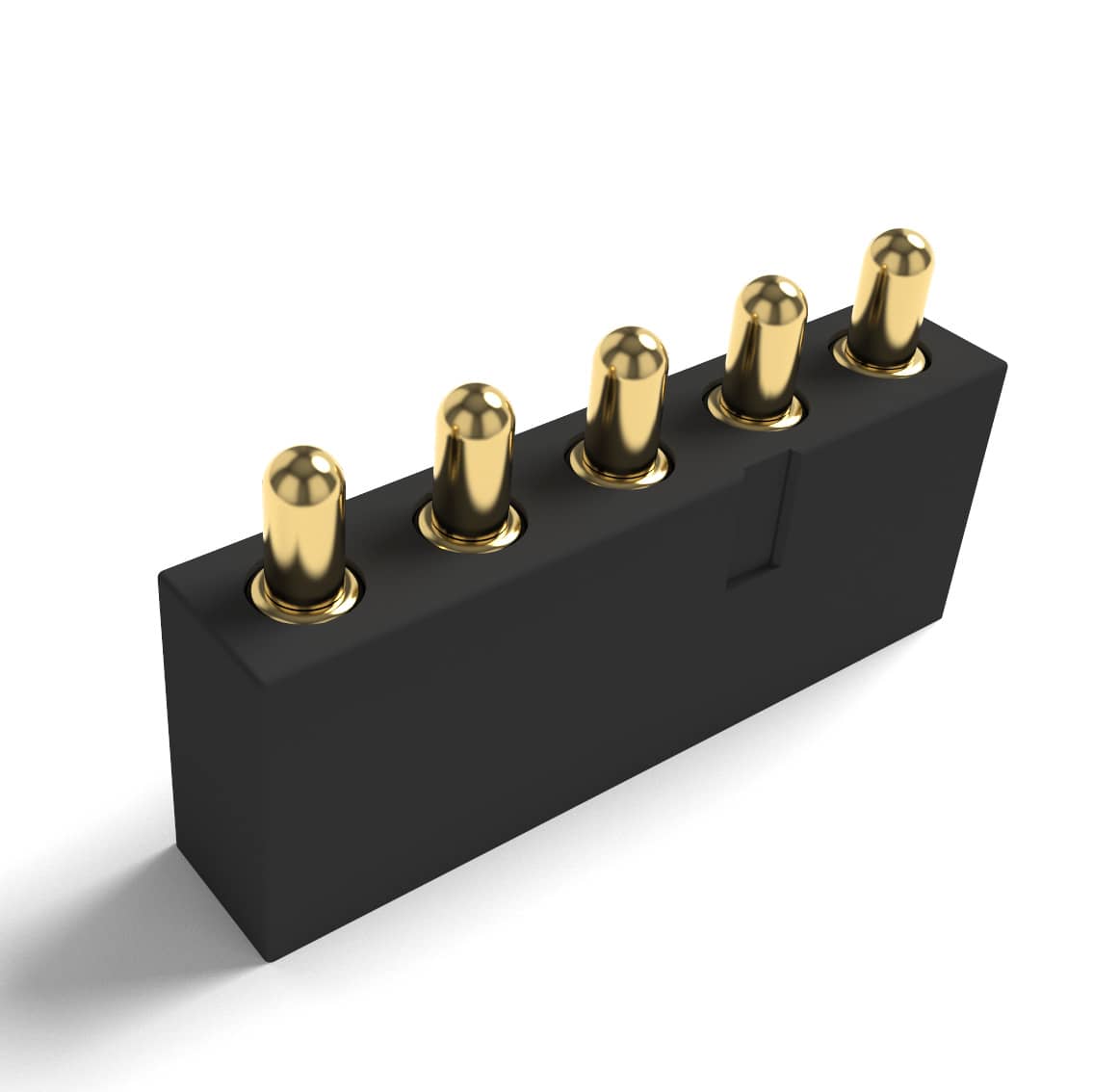

7.3 mm, 5 Pins, Non Standard Connectors, 6.25 mm Working Height, Pitch 2.54 mm
| Category |
Non Standard Connectors
|
| Part Number |
P2315MF01-05L254MR |
| Length |
7.30 |
| Working Height |
6.25 |
| Pin Direction |
Vertical
|
| Pin Amount |
5 |
| Pitch |
2.54 |
| Rated Current |
5 |
| Contact Resistance |
20 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickle/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickle/Au |
| Spring Base |
SUS304 |
| Housing |
HTN |
| Rated Current |
5 A |
| Rated Voltage |
60 V |
| Contact Resistance |
20 mΩ |
| Spring Force |
80 g ± 20% |
| Life Cycle |
10000 |
Description
P2315MF01-05L254MR
C.C.P. Contact Probes Co., LTD.
