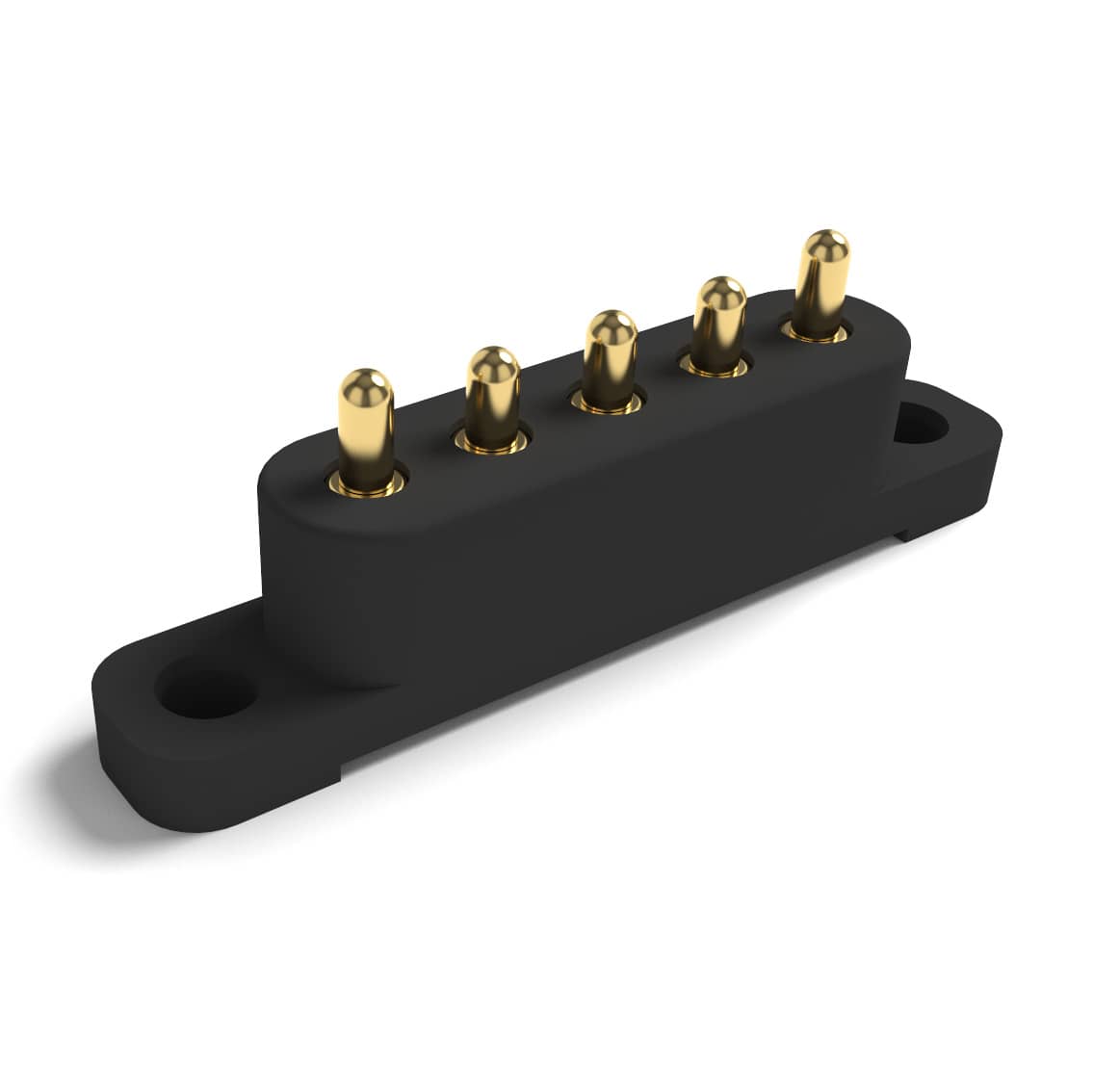

6.4/6.1 mm, 5 Pins, Non Standard Connectors, 4.6 mm Working Height, Pitch 2.5 mm
| Category |
Non Standard Connectors
|
| Part Number |
P2673MF02-05R250HT |
| Working Height |
4.60 |
| Pin Direction |
Vertical
|
| Pin Amount |
5 |
| Pitch |
2.50 |
| Rated Current |
2 |
| Contact Resistance |
50 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickle/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickle/Au |
| Spring Base |
SUS301 |
| Housing |
HTN |
| Rated Current |
2 A |
| Rated Voltage |
12 V |
| Contact Resistance |
50 mΩ |
| Spring Force |
150/130 g ± 20% |
| Life Cycle |
10000 |
Description
P2673MF02-05R250HT
Cap Base: HTN
C.C.P. Contact Probes Co., LTD.
