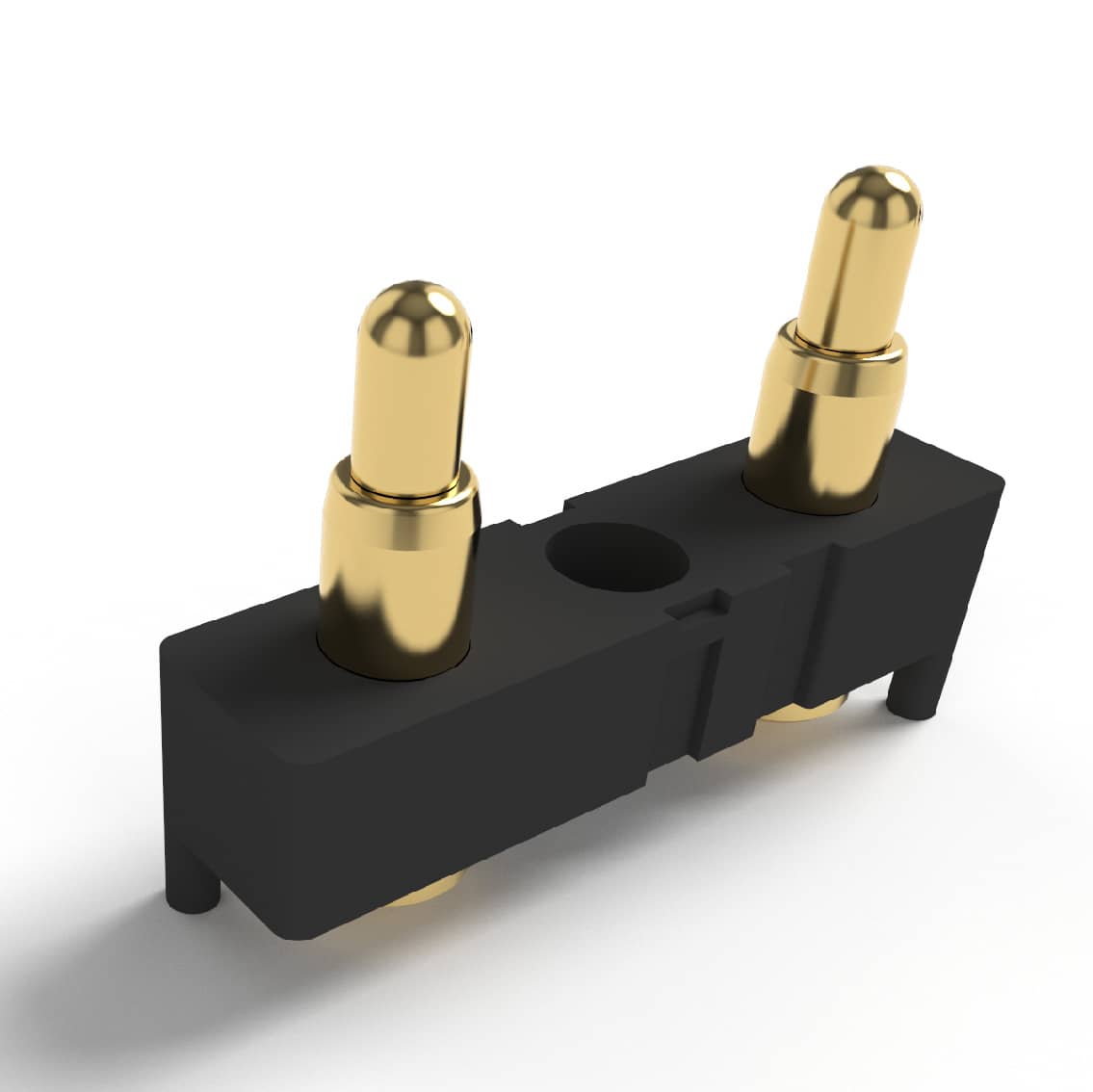

6.3 mm, 2 Pins, Non Standard Connectors, 5.2 mm Working Height, Pitch 6 mm
| Category |
Non Standard Connectors
|
| Part Number |
P3037MF01-03A300HB |
| Length |
6.30 |
| Working Height |
5.20 |
| Pin Direction |
Vertical
|
| Pin Amount |
2 |
| Pitch |
6.00 |
| Rated Current |
1 |
| Contact Resistance |
50 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickel/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickel/Au |
| Spring Base |
110 |
| Housing |
HTN |
| Rated Current |
1 A |
| Rated Voltage |
12 V |
| Contact Resistance |
50 mΩ |
| Spring Force |
110 g ± 20% |
| Life Cycle |
10000 |
Description
P3037MF01-03A300HB
C.C.P. Contact Probes Co., LTD.
