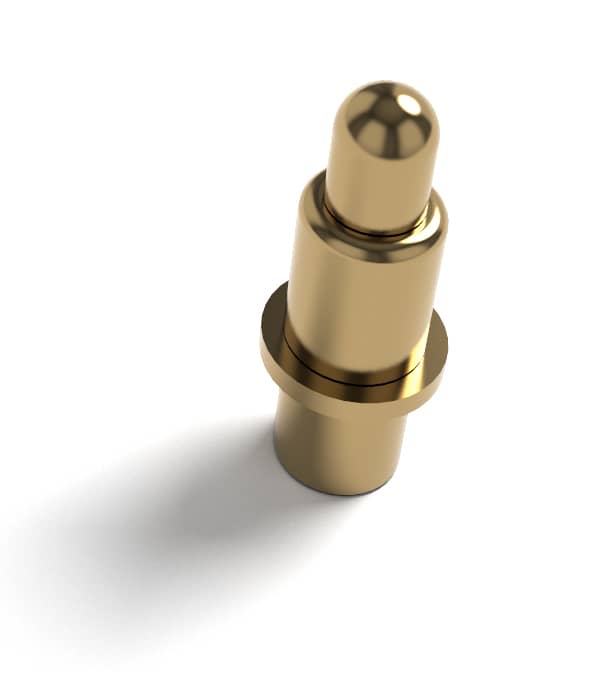

5.5 mm, 1 Pin, 4.2 mm Working Height, P2336PH01

5.5 mm, 1 Pin, 4.2 mm Working Height, P2336PH01
Previous Pause Next
  • 0
  • 1
Category
Single Pogo Pins
Part Number P2336PH01
Length 5.50
Working Height 4.20
Pin Direction Vertical
Pin Amount 1
Pitch 0.00
Rated Current 2
Contact Resistance 50 mΩ
Datasheet P2336PH01-Model.pdf
3D CAD p2336ph01.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring Base SUS304
Housing n/a
Rated Current 2 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 60 g ± 20%
Life Cycle 10000

Description

P2336PH01
