5.4 mm, 1 Pin, 4 mm Working Height, D1838AA01

5.4 mm, 1 Pin, 4 mm Working Height, D1838AA01
Previous Pause Next
  • 0
  • 1
Category
Single Pogo Pins
Part Number D1838AA01
Length 5.40
Working Height 4.00
Pin Direction Vertical
Pin Amount 1
Pitch 0.00
Rated Current 1
Max Outer Diameter (mm) 1.90
Contact Resistance 100 mΩ
Datasheet D1838AA01-Model.pdf
3D CAD D1838AA01.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base SUS304
Housing n/a
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 130 g ± 20%
Life Cycle 10000

Description

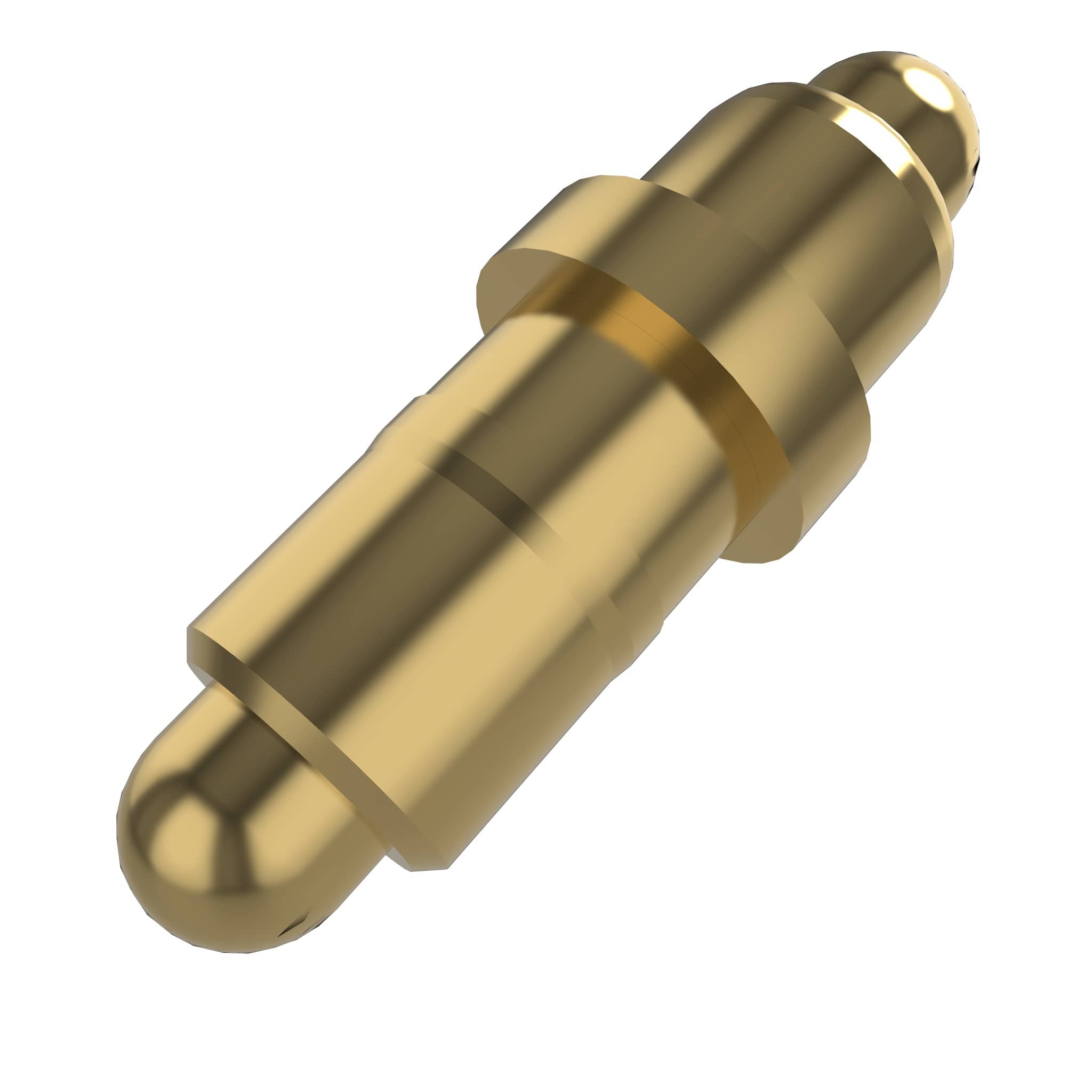

D1838AA01 is a double ended pogo pin with a press fit ring that can be pressed into a plastic housing.
