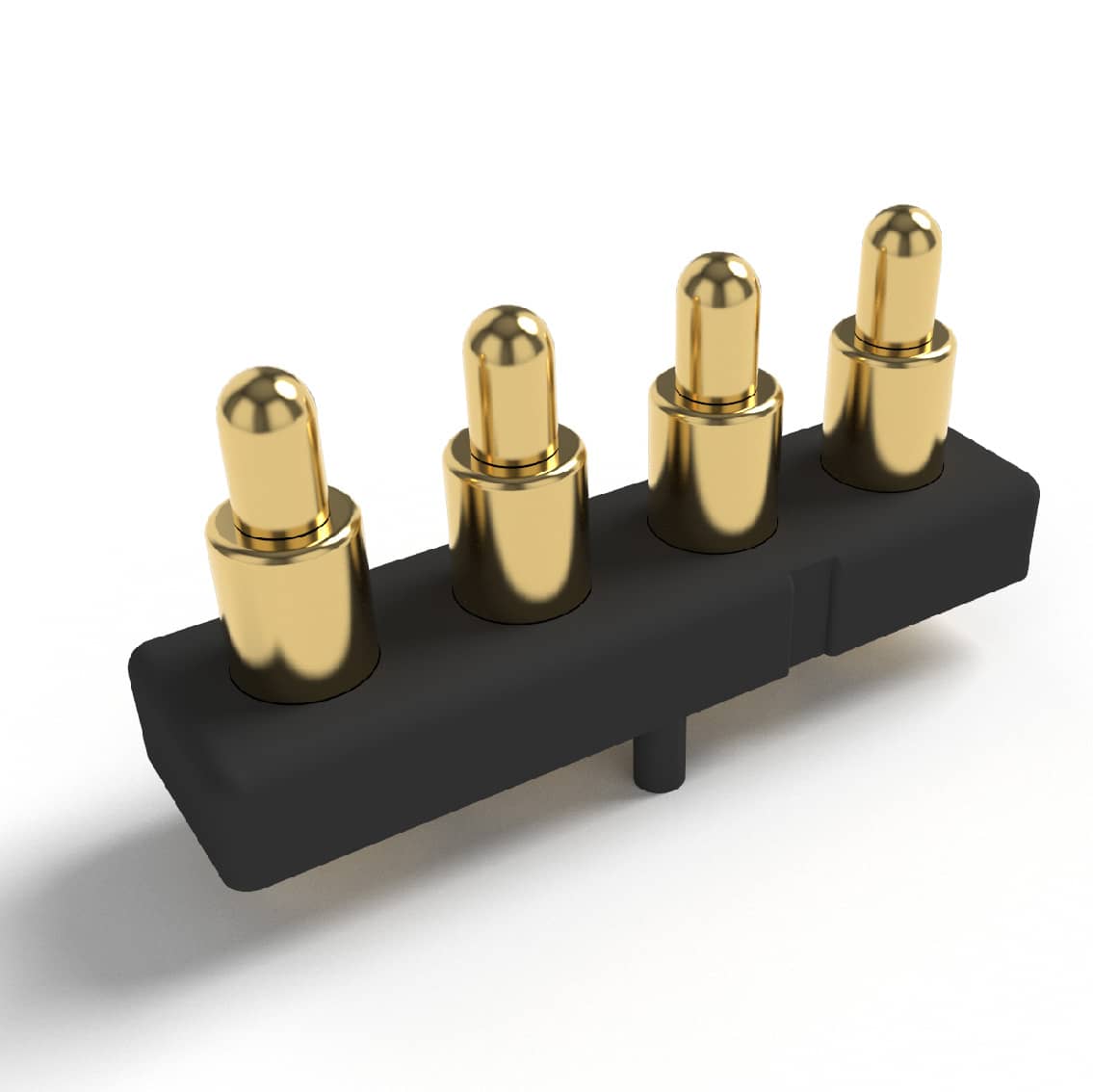

5 mm, 4 Pins, Non Standard Connectors, 3.8 mm Working Height, Pitch 2.5 mm
Category |
Non Standard Connectors
|
Part Number |
P2808MF01-04D250MR |
Length |
5.00 |
Working Height |
3.80 |
Pin Direction |
Vertical
|
Pin Amount |
4 |
Pitch |
2.50 |
Rated Current |
2 |
Contact Resistance |
50 mΩ |
Product Specifications
Plunger Base |
Brass |
Plunger Plating |
Nickel/Au |
Barrel Base |
Brass |
Barrel Plating |
Nickel/Au |
Spring Base |
SUS301 |
Housing |
HTN |
Rated Current |
2 A |
Rated Voltage |
12 V |
Contact Resistance |
50 mΩ |
Spring Force |
90 g ± 20% |
Life Cycle |
12000 |
Description
P2808MF01-04D250MR
