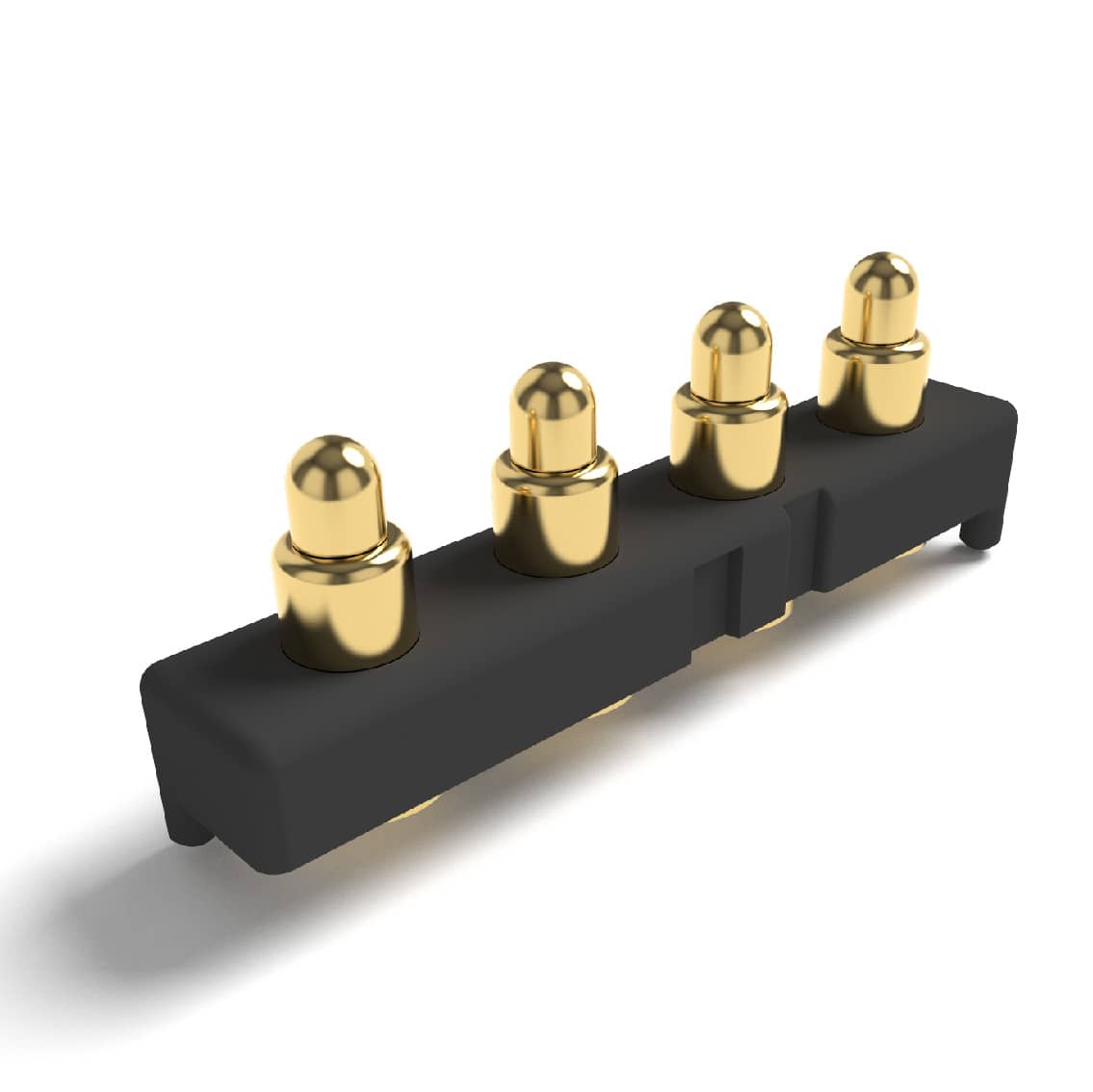

4.1 mm, 4 Pins, Non Standard Connectors, 3.3 mm Working Height, Pitch 3 mm
| Category |
Non Standard Connectors
|
| Part Number |
F1853AA02-04F300MR |
| Length |
4.10 |
| Working Height |
3.30 |
| Pin Direction |
Vertical
|
| Pin Amount |
4 |
| Pitch |
3.00 |
| Rated Current |
1 |
| Contact Resistance |
50 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickle/Pd |
| Barrel Base |
Brass |
| Barrel Plating |
Nickel/Pd |
| Spring Base |
SUS304 |
| Housing |
HTN |
| Rated Current |
1 A |
| Rated Voltage |
12 V |
| Contact Resistance |
50 mΩ |
| Spring Force |
80 g ± 20% |
| Life Cycle |
10000 |
Description
F1853AA02-04F300MR
C.C.P. Contact Probes Co., LTD.
