C.C.P. Contact Probes Co., LTD.

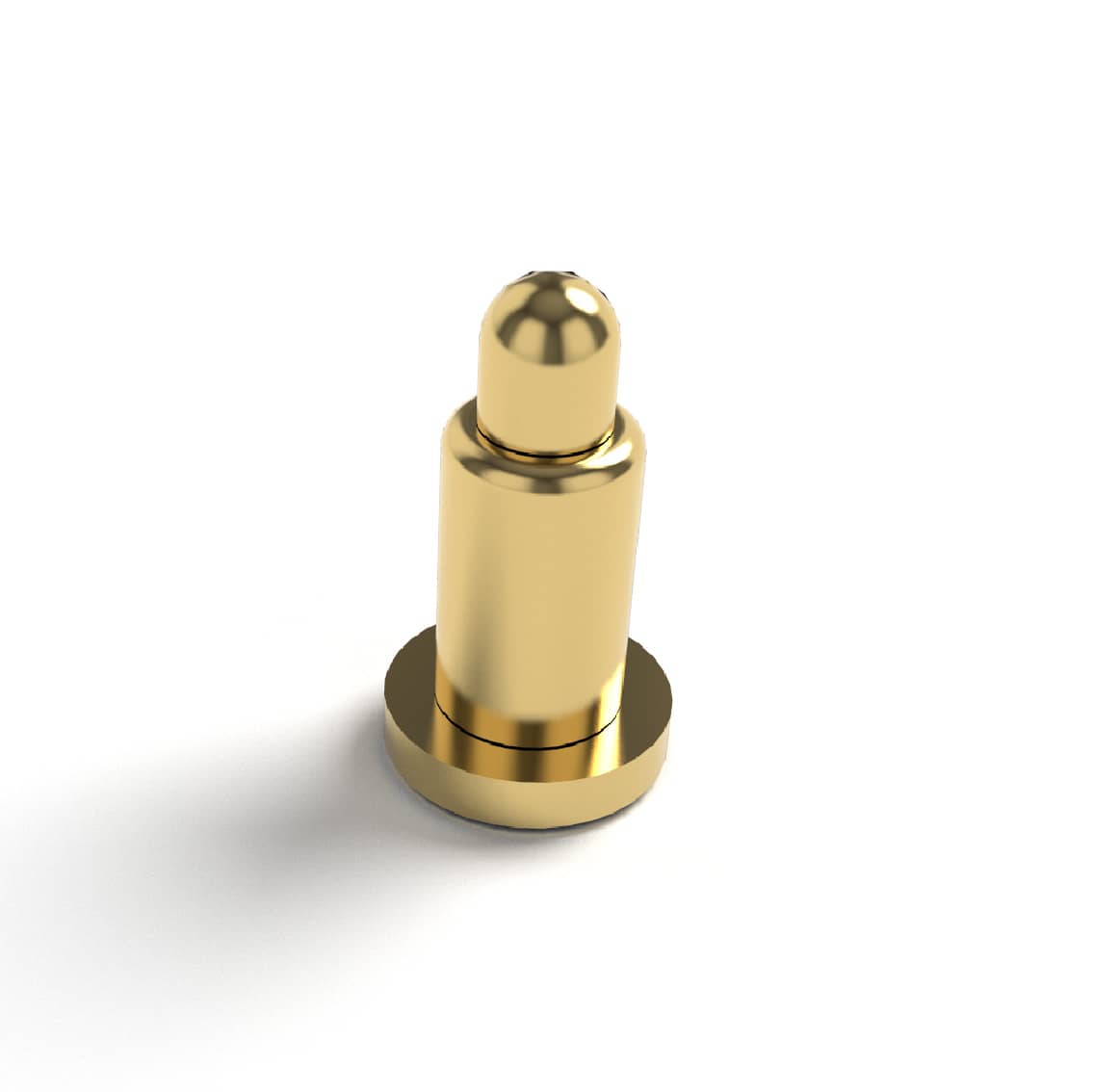

4.1 mm, 1 Pin, 3.6 mm Working Height, P5067FP01-R
4.1 mm, 1 Pin, 3.6 mm Working Height, P5067FP01-R
| Category |
Single Pogo Pins
|
| Part Number | P5067FP01-R |
| Length | 4.10 |
| Working Height | 3.60 |
| Pin Direction | Vertical |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1 |
| Contact Resistance | 100 mΩ |
| Datasheet | P5067FP01-R-Model.pdf |
| 3D CAD | P5067FP01-R.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Spring Base | SUS |
| Housing | n/a |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 100 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 100000 |
