C.C.P. Contact Probes Co., LTD.
3.6 mm, 2 Pins, Waterproof Connectors, 3.1 mm Working Height, Pitch 4 mm
3.6 mm, 2 Pins, Waterproof Connectors, 3.1 mm Working Height, Pitch 4 mm
| Category |
Waterproof Connectors
|
| Part Number | P5562MP01-02B400HB |
| Length | 3.60 |
| Working Height | 3.10 |
| Pin Direction | Vertical |
| Pin Amount | 2 |
| Pitch | 4.00 |
| IP Factor | IPX8 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | P5562MP01-02B400HB.pdf |
| 3D CAD | P5562MP01-02B400HB.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS |
| Housing | PPS |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 10000 |
Description

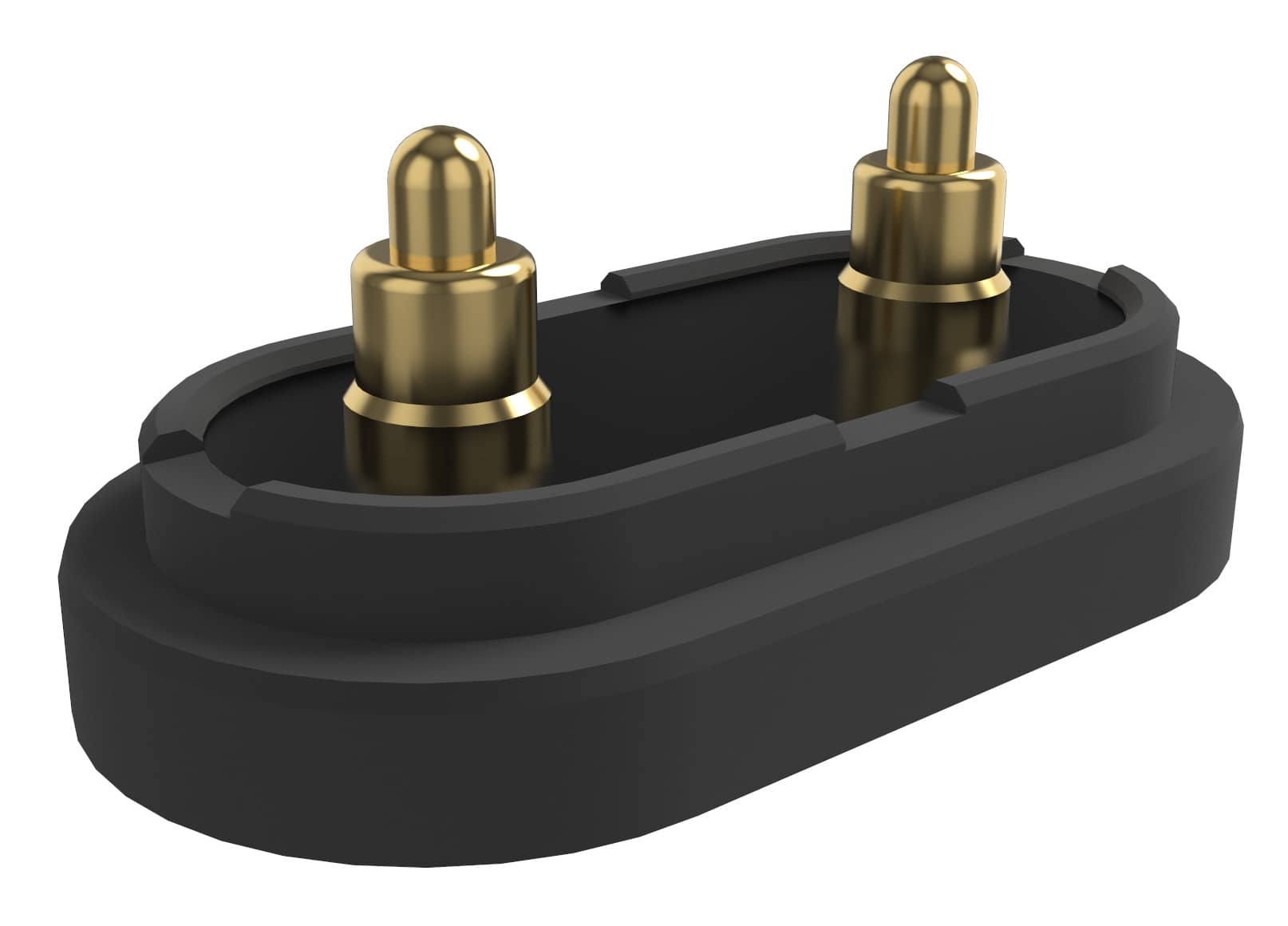

IPX8 Waterproof 2 Pogo Pins Connector
Application: Wearable Devices - TWS Earbuds, Smart Watch, SmartPhone
P5562MP01-02B400HB
