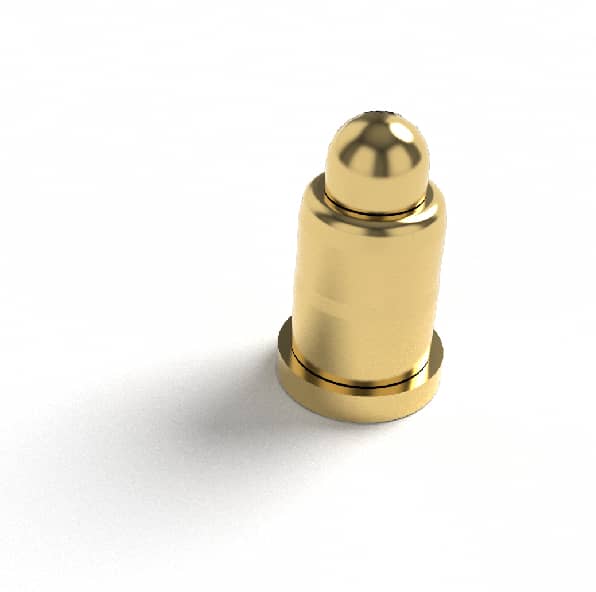

3.1 mm, 1 Pin, 2.5 mm Working Height, P3198FH01
3.1 mm, 1 Pin, 2.5 mm Working Height, P3198FH01
| Category |
Single Pogo Pins
|
| Part Number | P3198FH01 |
| Length | 3.10 |
| Working Height | 2.50 |
| Pin Direction | Vertical |
| Pin Amount | 1 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | P3198FH01-Model.pdf |
| 3D CAD | P3198FH01.STEP |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickel/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickel/Au |
| Spring Base | SUS304 |
| Housing | HTN |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 80 g ± 20% |
| Life Cycle | 10000 |
