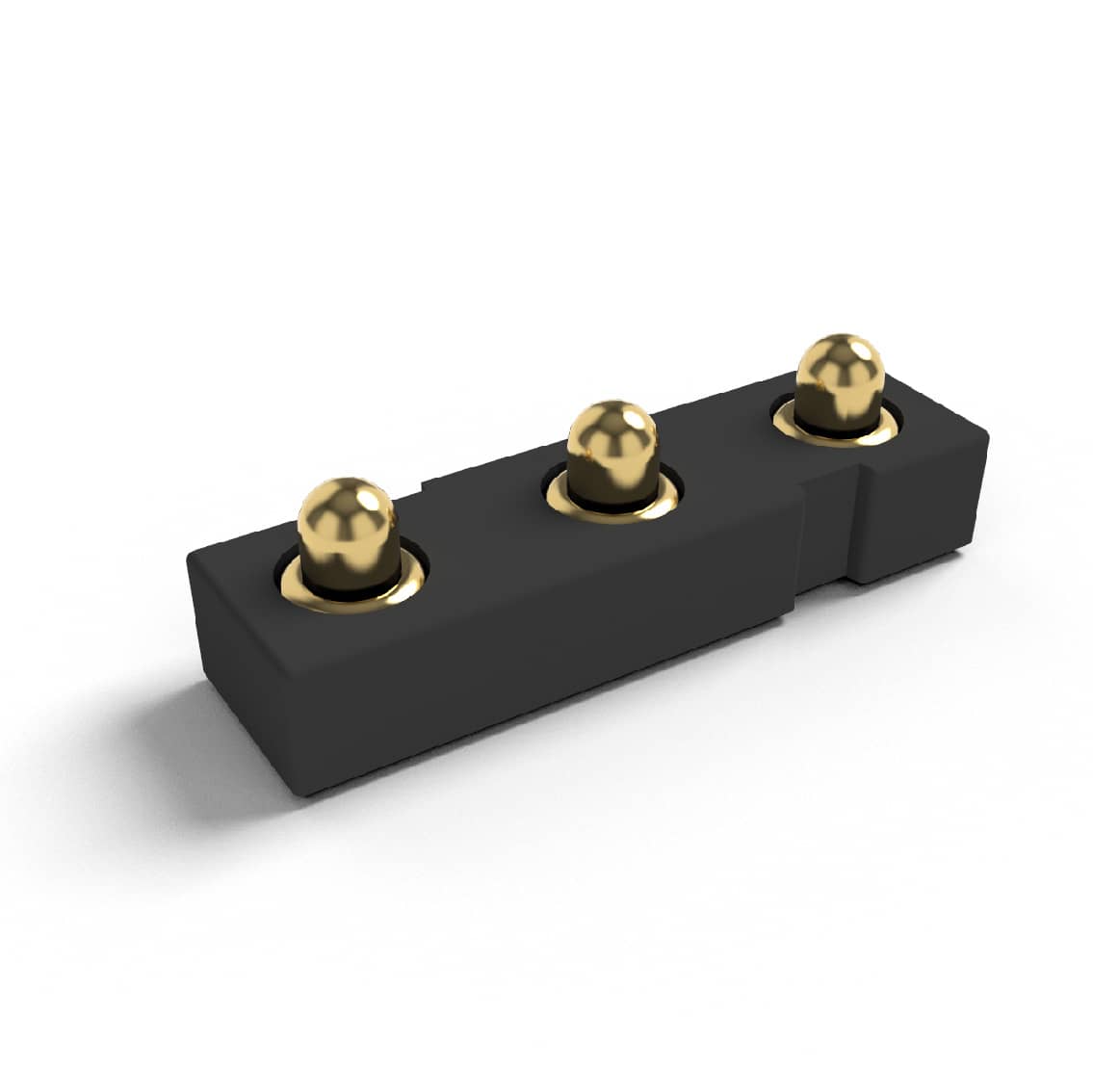

2.3 mm, 3 Pins, Non Standard Connectors, 2.17 mm Working Height, Pitch 2.5 mm
| Category |
Non Standard Connectors
|
| Part Number |
F1168AA01-03A250MR |
| Length |
2.30 |
| Working Height |
2.17 |
| Pin Direction |
Vertical
|
| Pin Amount |
3 |
| Pitch |
2.50 |
| Rated Current |
1 |
| Contact Resistance |
100 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickel/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickel/Au |
| Spring Base |
30~80 |
| Housing |
HTN |
| Rated Current |
1 A |
| Rated Voltage |
12 V |
| Contact Resistance |
100 mΩ |
| Spring Force |
30~80 g ± 20% |
| Life Cycle |
10000 |
Description
F1168AA01-03A250MR
C.C.P. Contact Probes Co., LTD.
