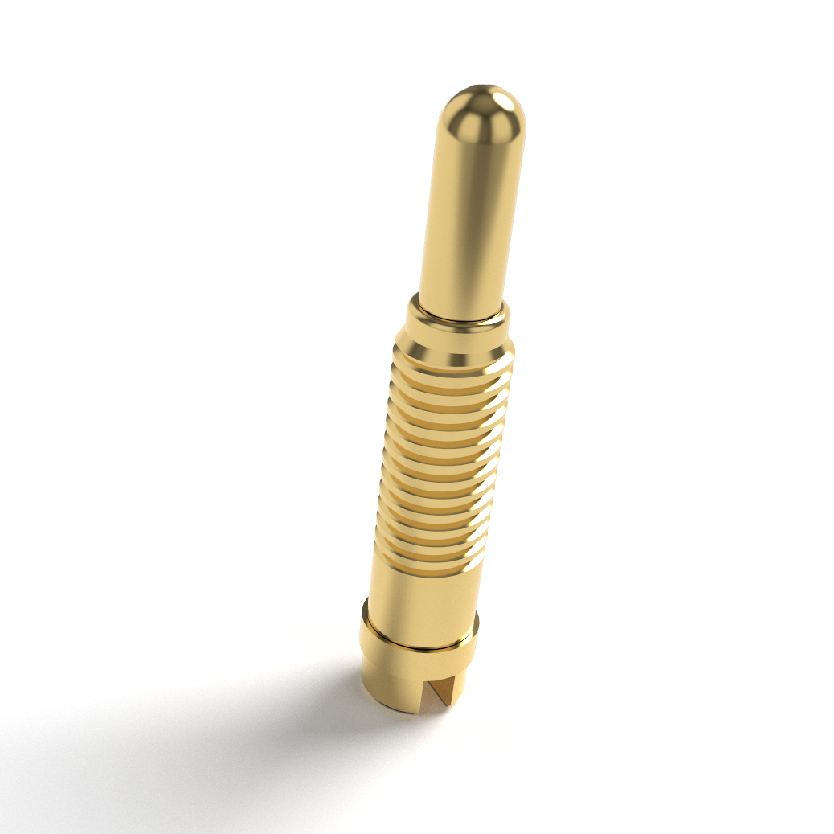

15 mm, 1 Pin, 13 mm Working Height, P07417PH1
15 mm, 1 Pin, 13 mm Working Height, P07417PH1
| Category |
Screw Pins
|
| Part Number | P07417PH1 |
| Length | 15.00 |
| Working Height | 13.00 |
| Pin Direction | Vertical |
| Pin Amount | 1 |
| Pitch | 0.00 |
| Rated Current | 1 |
| Contact Resistance | 50 mΩ |
| Datasheet | P07417PH1-Model.pdf |
Get a Quotation
| Lead Time | 28 |
Product Specifications
| Plunger Base | Brass |
| Plunger Plating | Nickle/Au |
| Barrel Base | Brass |
| Barrel Plating | Nickle/Au |
| Spring Base | SUS |
| Housing | n/a |
| Rated Current | 1 A |
| Rated Voltage | 12 V |
| Contact Resistance | 50 mΩ |
| Spring Force | 250 g ± 20% |
| Life Cycle | 10000 |
