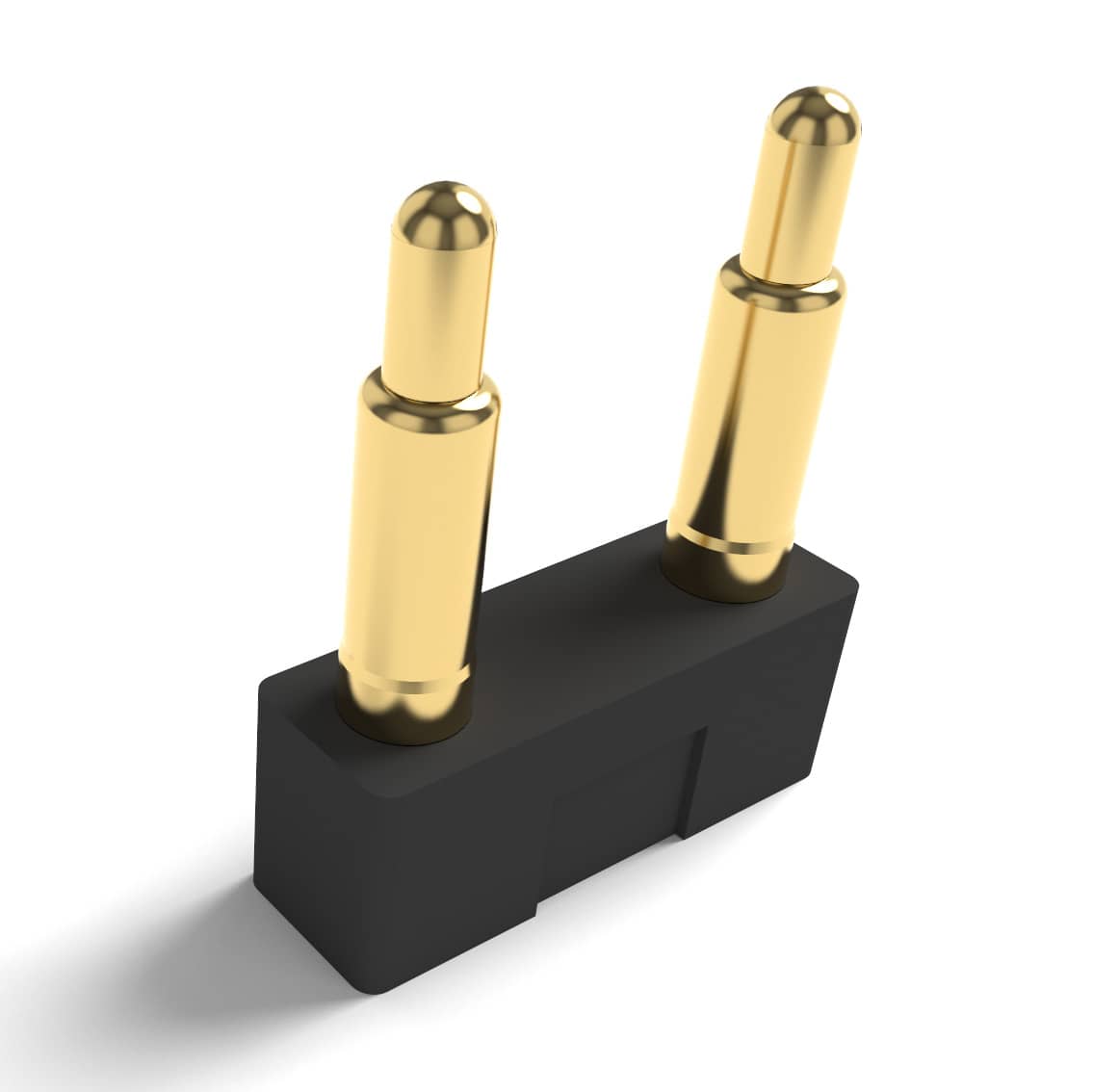

10 mm, 2 Pins, Non Standard Connectors, 8.4 mm Working Height, Pitch 5.08 mm
| Category |
Non Standard Connectors
|
| Part Number |
P2780MF01-02A508MR |
| Length |
10.00 |
| Working Height |
8.40 |
| Pin Direction |
Vertical
|
| Pin Tail |
Soldering Cup
|
| Pin Amount |
2 |
| Pitch |
5.08 |
| Rated Current |
1 |
| Contact Resistance |
50 mΩ |
Product Specifications
| Plunger Base |
Brass |
| Plunger Plating |
Nickel/Au |
| Barrel Base |
Brass |
| Barrel Plating |
Nickel/Au |
| Spring Base |
100 |
| Housing |
HTN |
| Rated Current |
1 A |
| Rated Voltage |
12 V |
| Contact Resistance |
50 mΩ |
| Spring Force |
100 g ± 20% |
| Life Cycle |
10000 |
Description
P2780MF01-02A508MR
C.C.P. Contact Probes Co., LTD.
