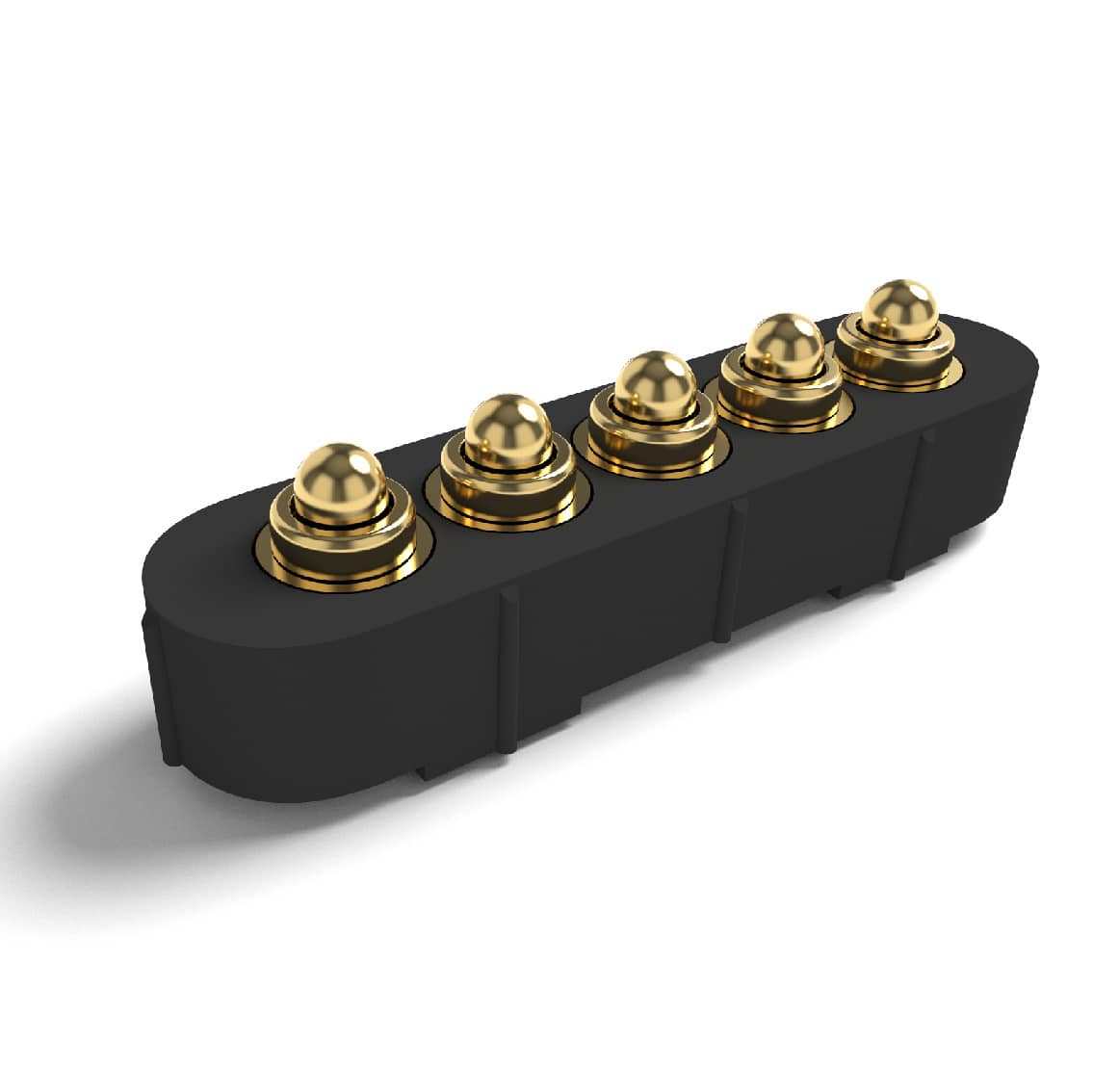

0.7 mm, 5 Pins, Non Standard Connectors, 0.3 mm Working Height, Pitch 1.3 mm

0.7 mm, 5 Pins, Non Standard Connectors, 0.3 mm Working Height, Pitch 1.3 mm
Previous Pause Next
  • 0
  • 1
Category
Non Standard Connectors
Part Number P2288MP02-05A130HR
Length 0.70
Working Height 0.30
Pin Direction Vertical
Pin Tail Soldering Cup
Pin Amount 5
Pitch 1.30
Rated Current 1
Contact Resistance 100 mΩ
Datasheet P2288MP02-05A130HR-Model.pdf
3D CAD P2288MP02-05A130HR.STEP
Get a Quotation
Lead Time 28

Product Specifications

Plunger Base Brass
Plunger Plating Nickle/Au
Barrel Base Brass
Barrel Plating Nickle/Au
Spring Base SWP
Housing DSM PA46
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 100 mΩ
Spring Force 100 g ± 20%
Life Cycle 10000

Description

P2288MP02-05A130HR
