디지털 오실로스코프

  2. 디지털 오실로스코프
  • State-of-the-Art Sampling Oscilloscope for Communication Signal Analysis, TDR/TDT/Serial Data Network Analysis, Acquisition, and Measurements of Repetitive Ultrafast Signals
  • Acquisition of Spread Spectrum Clocking (SSC) Signals
  • Industry’s Only Mainframe to Support up to 8 Input Channels for Increased Flexibility and Throughput
  • Four Color-graded, Variable Persistence Waveform Databases
  • Measurement System with Over 100 Automated Measurements
  • Complete Suite of Communications Measurements includes Both Types of OMA, SSC Profile, and Many Others
  • Automated ITU/ANSI/IEEE Mask Testing
  • Masks and Measurements for SONET/SDH, FC, Ethernet, and Other Standards Built-in
  • Mask Updates can be Loaded from Factory-supplied File
  • Mask Margin Testing for Guard Banding Production Testing
  • Industry’s Best Standard Time-base Jitter Performance, 800 fsRMS
  • Industry-leading Time-base Jitter Performance, <200 fsRMS Available with Phase Reference Module
  • Fast Acquisition Rate and High Throughput
  • Remote Samplers enabling Placement Near DUT for Superior Signal Fidelity
  • FrameScan Acquisition Mode with Eye Diagram Averaging:
  • Isolate Data-dependent Faults
  • Examine Low-power Signals
  • MS Windows XP Operating System
  • Advanced Connectivity to 3rd party Software

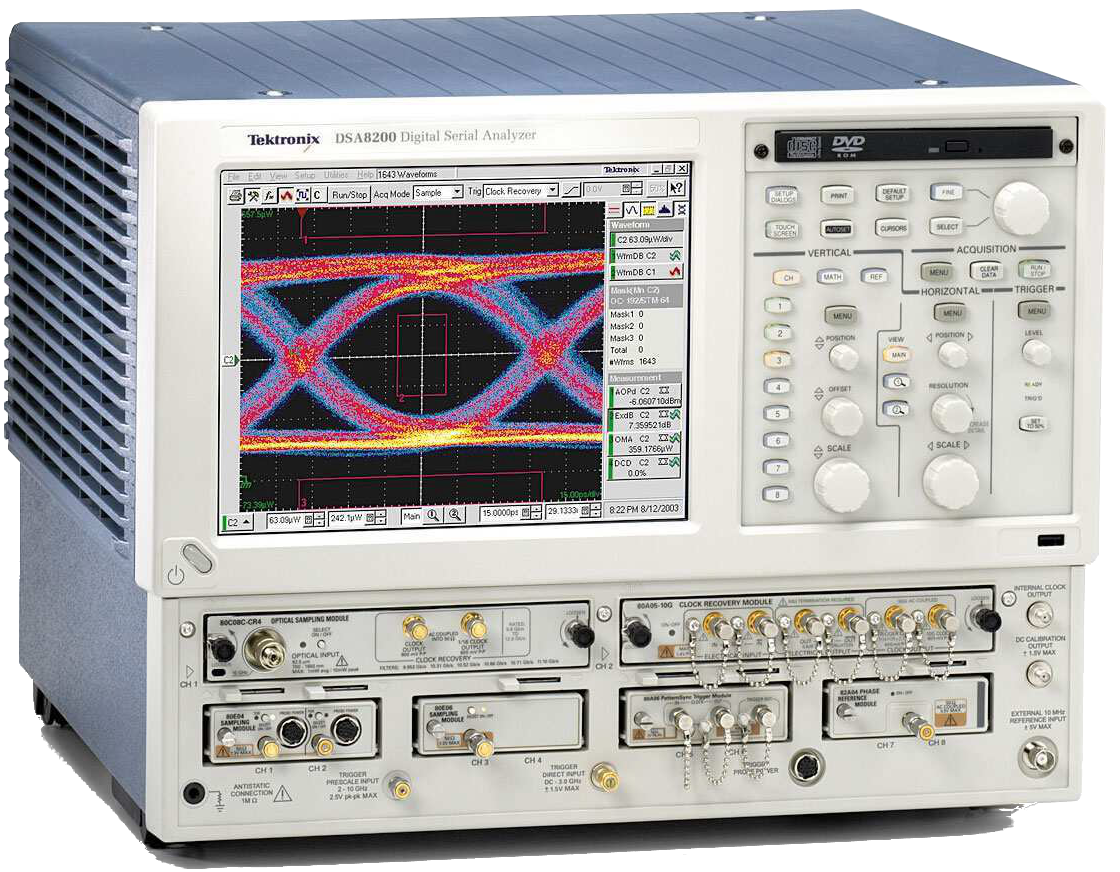

Tektronix DSA8200
Tektronix DSA8200
이 장치는 시간 경과에 따른 전압 및 전류 신호를 측정하는 데 사용됩니다.
Electrical Performance
